The master product is a built-in screen based on Android system, and the slave product is a 18.5 inch FHD monitor. The main features as follows: Profile frame, surface sandblasting technology, fashionable appearance, elegant and generous. 3mm physical toughened high-permeability glass, wear-resistant, scratch-proof, damage-proof, no effect for visual effect.
| Key specification | System | Android 7.1 | ||
| Screen size | 18.5” | Network | RJ45x1 | |
| Outline Dimension | 430.37(H) ×254.6(V) × 11.2(W) mm | 4G | 4Gx1 | |
| Display Area | 408.96 (H) × 230.04(V)mm | HDMI | HDMI OUTx1 | |
| Resolution | 1920 ×1080 | SD Card | SDx1 | |
| Display Colors | 16.7M(8-bit) | WIFI/BT | WiFix1, BT4.0 | |
| Viewing Angle(H/V) | 178°/178° | Power Supply | ||
| Brightness (w/o TP) | 350cd/m² | Input Power | DC60-150V，50/60Hz | |
| Contrast Ratio | 1000:1 | Power Consumption (Standby) | ≤1W，Support low power standby mode | |
| Response Time(G to G) | 8ms | Power Consumption (Typical) | 60W | |
| Light Unit | LED | Special functional design and others | ||
| Backlight Life | 30000Hrs | Boot over 0℃ | Temperature inside the casing ≥ 0 ℃ to boot | |
| Protection Cover Plate | WAGO Power Connector | |||
| Tempered Glass | 3mm Luminousness ≥ 89% | |||
| Mainboard Specs | Installation | Hang/Built-in | ||
| Category | Android | Working Temperature | 0℃ - 60℃ | |

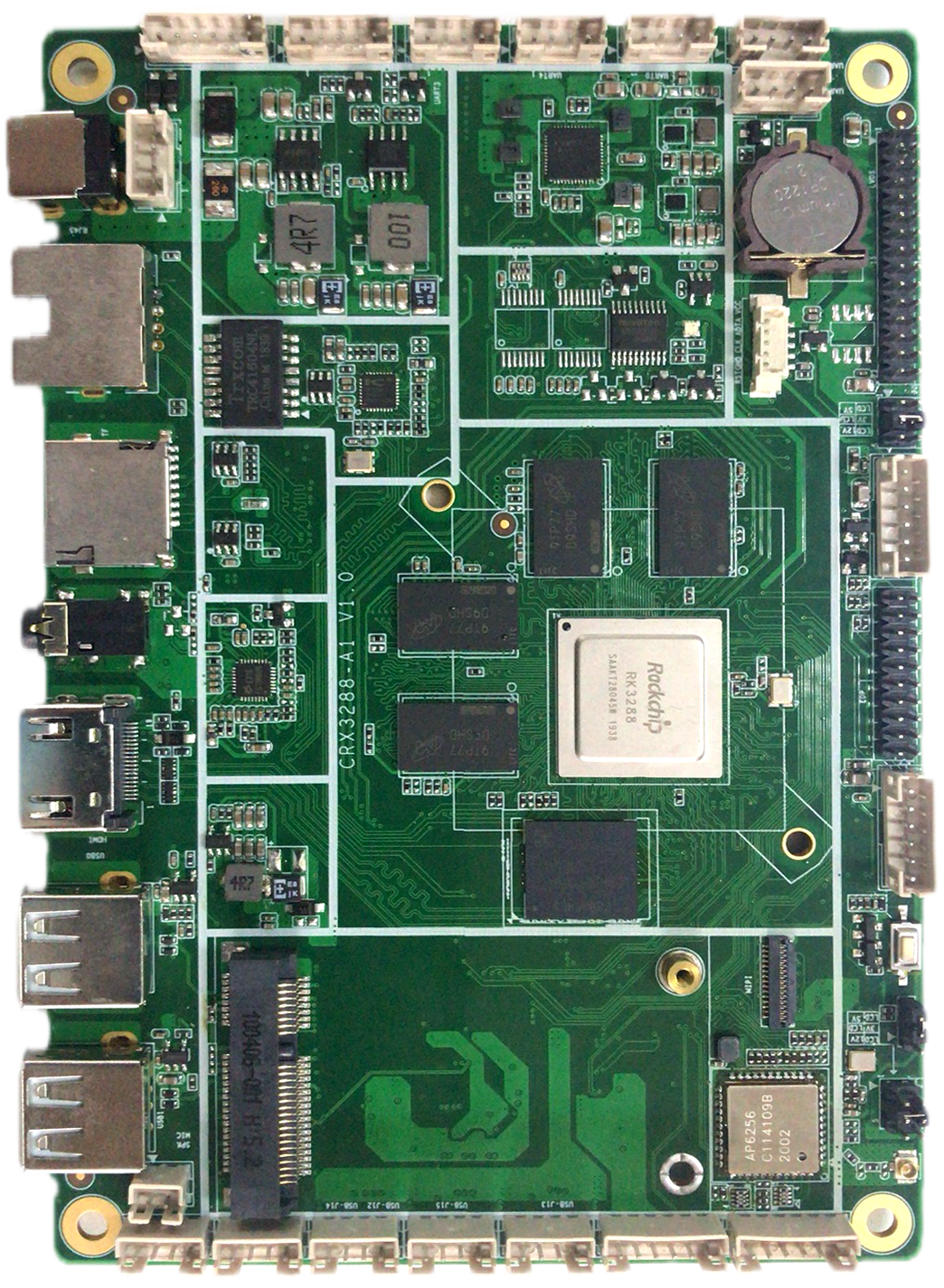

| CPU | RK3288 Cortex-A17 | Working humidity | 10% - 90% | |
| GPU | ARM Mali-T764 | |||
| RAM | 2G | |||
| RPM | 32G | |||
