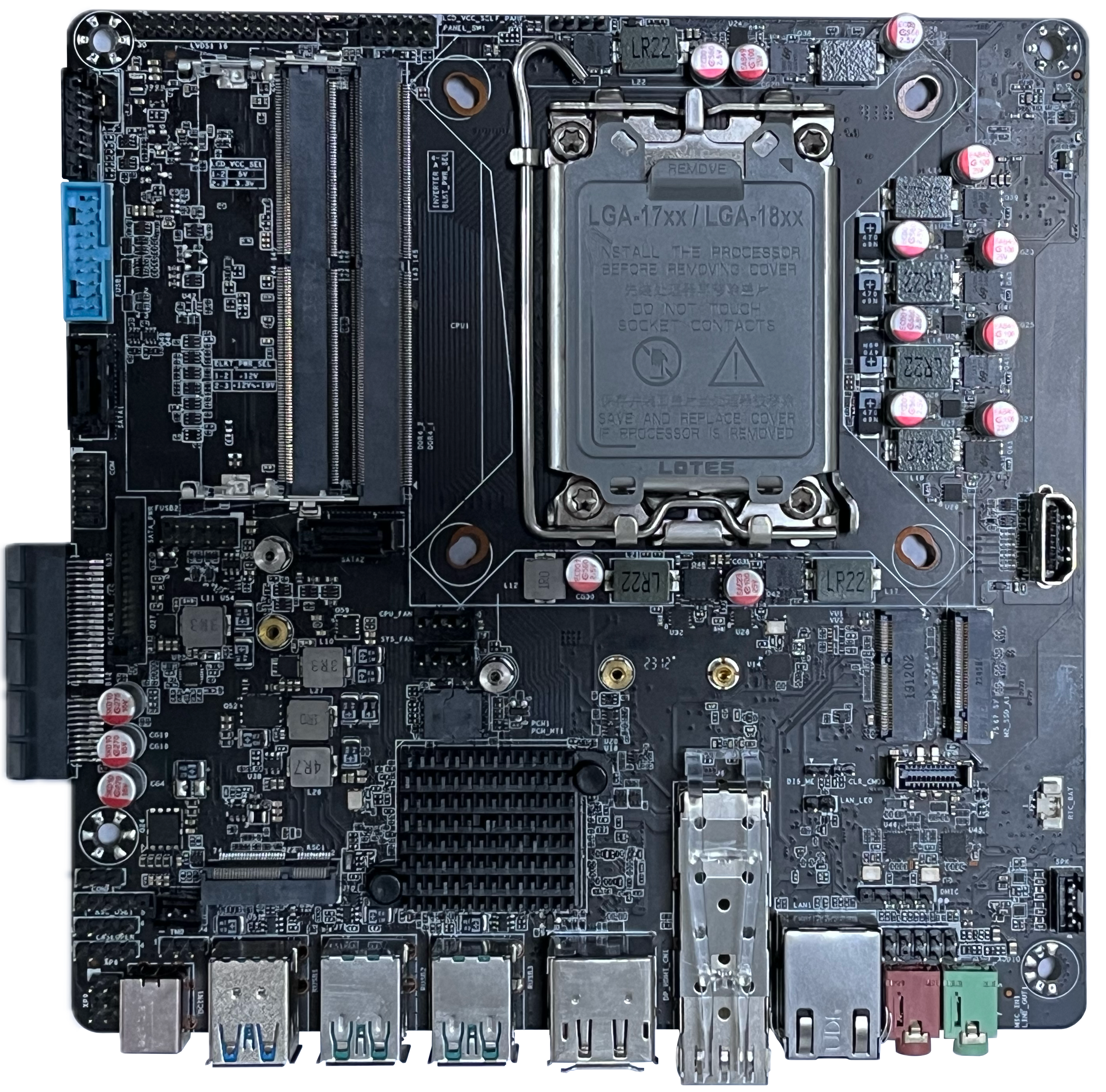

Intel Q670 Thin Mini ITX MB

Key specification
CPU	Support for 12/13/14^th Gen Intel core I7, I5, I3 Pentium, Celeron Processor (support TDP up to 65W)
CHIPSET	INTEL Q670
Graphics	By CPU
Memory	2 x DDR4 SO-DIMM socket supporting up to 64GB memory
Memory	Support for DDR4 3200MHz memory module
Audio	Realtek® ALC887; 5.1 Channel HD Audio
LAN	RTL8111H support 100/1000Mbps and RTL8211FS 1Gb Fiber SFP
Storage Interface	2 x SATA 6Gb/s connector
USB	2x USB 3.2 gen 1 port on back Panel Connector
	1 x USB3.2 gen 2 port on back Panel Connector
	4 x USB3.2 gen 2 port on back Panel Connector
	2x USB 2.0 port
	2x USB3.0, 1x USB 3.2 Gen2x2 for Type C on Front panel header Connector
Expansion Slots	1 x M.2 Socket with E key Type 2230 connector for M.2 WIFI(PCIE or CNVI)
	1 x M.2 Socket with M key Type 2242/2260/2280 connector for SATA SSD OR PCIE NVME SSD
	1xPCI-E 3.0 X4 SLOT, Open Back, support 12V 3A
Internal Connectors	1 x Front panel header; Rest/HDD LED/Power LED/Power Switch
	2 x SATA 6Gb/s connector
	1 x 15P SATA Power connector
	1 x LVDS Connector
	1 x 9P USB2.0 Header
	1 x 19P Header USB3.0 Gen1 x2
	1 x USB 3.2 Gen2 internal header for front panel cable with 2x2 and Type-C support
	1 x 9P Header RS232
	1 x 9P Header Front Audio
	1 x CPU Fan Header 1*4Pin
	1 x SYS Fan Header 1*4Pin
	1 x 4P ATX Connector
	1 x 2P CLR CMOS Header
	1 x 4P Intrusion detector
	1 x 2P Lan Led
	1 x 2P Header Flash Descriptor Security Override
	1 x 8P Header SPI Flash
	1 x 4P Header DMIC
	1 x HDMI vertical through-hole connector
	1 x 4P Header Buzzer
	1 x Front panel Audio (2*5pin)
Back Panel Connectors	2 x Audio Jack 3.5mm (Line-out & Mic in)
	2 x Dual Stack USB3.2 Gen2
	1 x Dual Stack USB3.2 Gen1
	1 x RJ45 port
	1 x HDMI + DP combo port
	1 x SFP
	1 x DC JACK
Form Factor	170mm x170mm
