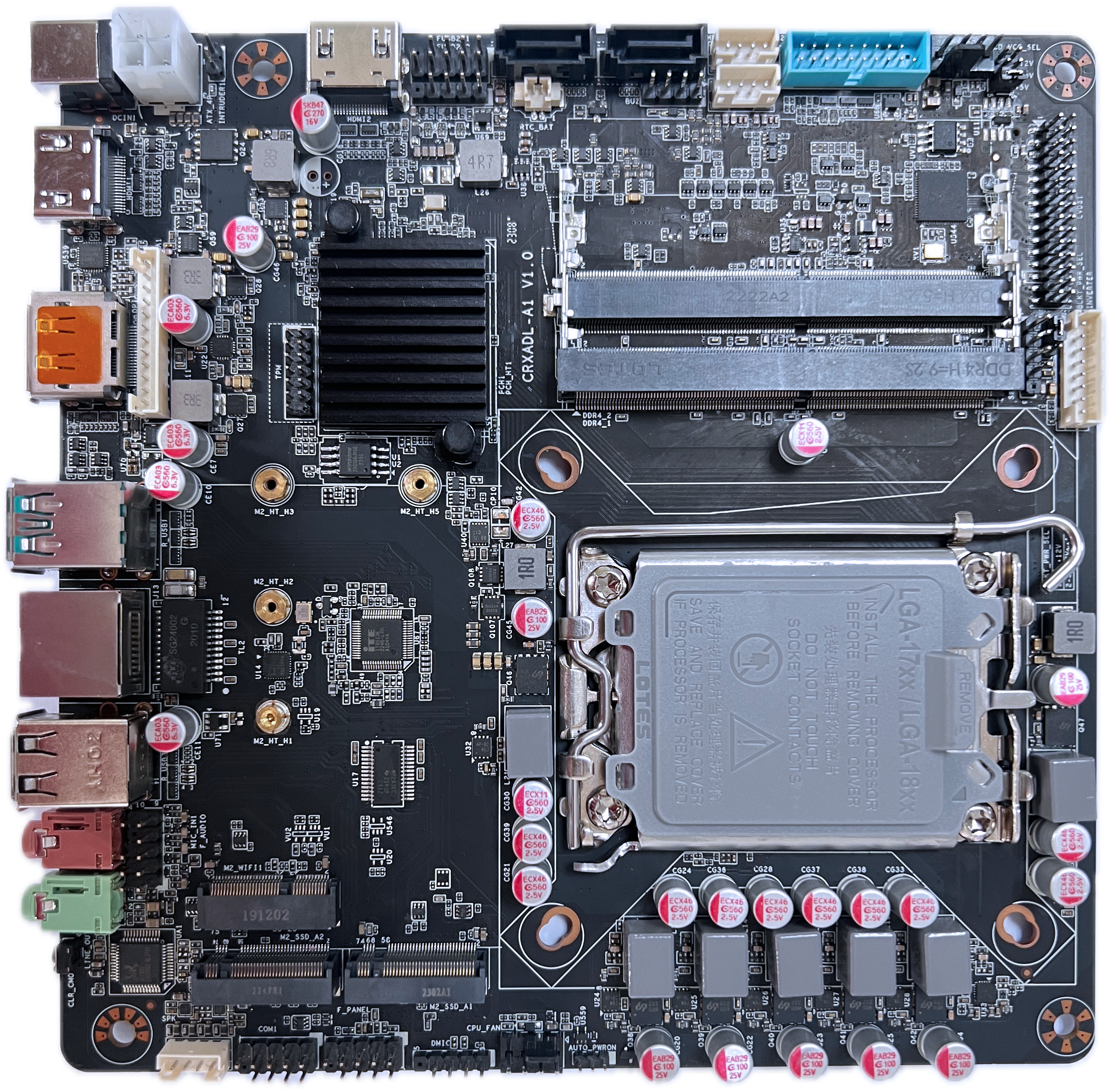

Intel H610 Thin Mini ITX MB
Desktop MB
| Key specification | |
| CPU | Support 12/13/14Gen Intel core I7, I5, I3 Pentium, Celeron Processor in 1700Pin(support TDP up to 65W) |
| CHIPSET | INTEL H610/B660 |
| Graphics | By CPU |
| Memory | 2 x DDR4 SO-DIMM Dual channel memory architecture socket Max. 64GB |
| Support for DDR4 3200/3000/2933/2800/2666/2400/2133 MHz | |
| Support Intel® Extreme Memory Profile (XMP) | |
| Audio | HD Audio ALC897 |
| LAN | Realtek RTL8111H, support 10/100/1000Mbps |
| Storage Interface | 2 x SATA 6Gb/s connector |
| Expansion Slots | 1xM.2 WIFI/BT 2230 Key E, (CNVi & PCIe) |
| 1xM.2 SSD 2280 Key M (support PCIe 4.0 x4) | |
| 1xM.2 SSD 2242/2260/2280 Key M, (support PCIe 3.0 x4 & SATA mode) | |
| Internal Connectors | 1×PWR_IN(4pin ATX power connector) |
| 1×LVDS_CON | |
| 1×EDP_CON (default without) | |
| 1×FP_AUDIO 2*5pin | |
| 1×F_PANEL 2*5pin | |
| 1×SW_VOL_PANEL 1*4pin(VOL-/VOL+/GND/SW) | |
| 1×SPK_OUT 4pin | |
| 2×SATA_PWR 4pin | |
| 2×SATA 6Gb/s(SATAIII) | |
| 1×CPU_FAN 4pin | |
| 1×SYS FAN 4pin | |
| 3× USB2.0 pin | |
| 1×USB3.0 pin(2*10PIN) | |
| 1×INV_VOT_SEL 3pin(12V/19VS) | |
| 1×INVERTER 8pin | |
| 1×LCD_VDD _SEL 2*3pin(5/10/12V) | |
| 1×AUTO Power 3pin(with jump cap) | |
| 1×COM 2*5pin | |
| 1*DMIC 5pin | |
| 1*TPM 2*7pin | |
| 1* VGA 12pin | |
| 1*HDMI | |
| 1*BUZZER 4pin | |
| 1*Chassis Intrusion header 2pin | |
| Back Panel Connectors | 2 x Audio Connector (Headphone and Mic) |
| 1 x DP port | |
| 1 x HDMI port | |
| 1 x DC JACK | |
| 2 x USB3.2 gen 2 | |
| 2 x USB 2.0(H610)/2xUSB3.2 gen 1(B660) | |
| 1 x RJ45 port | |
| 1 x CLR_CMOS BUTTON | |
| Form Factor | 170mm x170mm |
